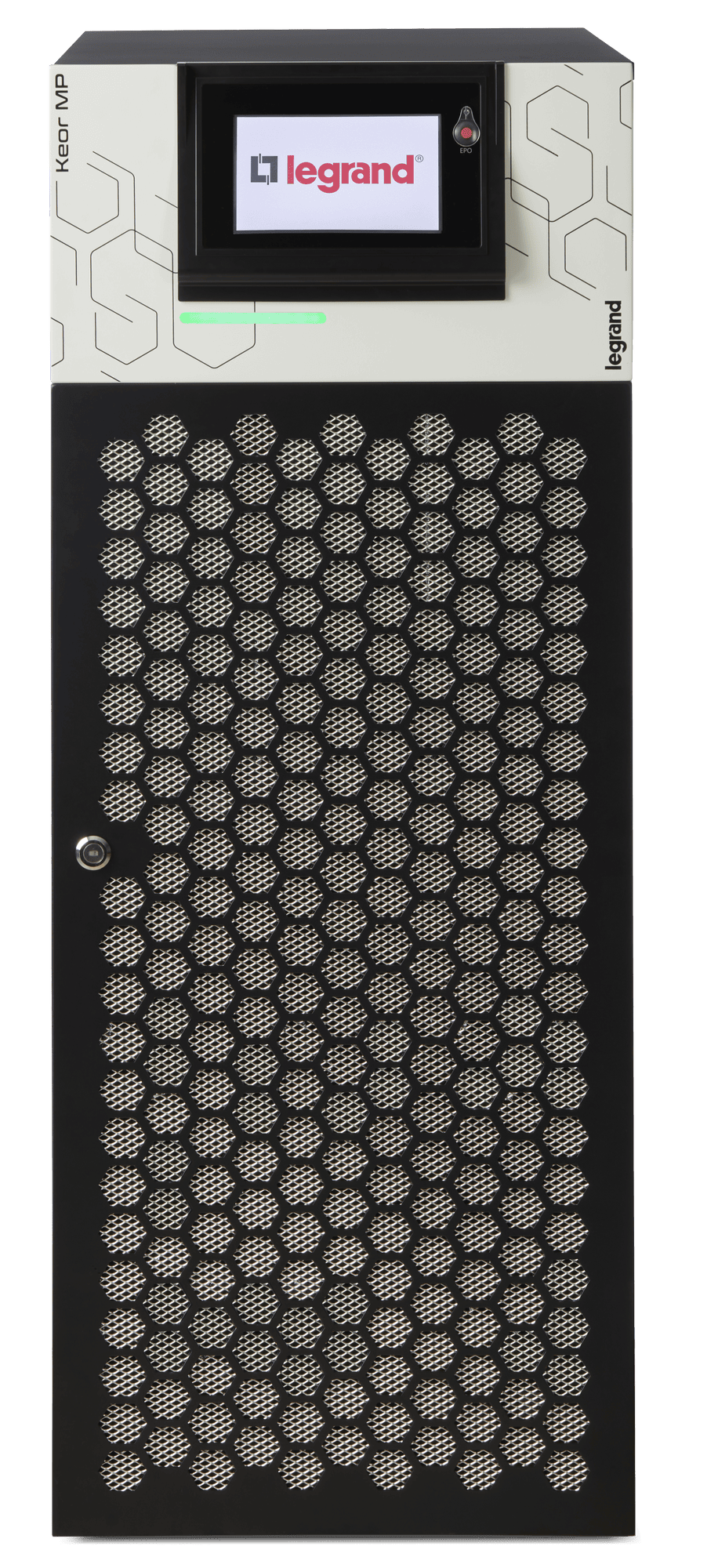

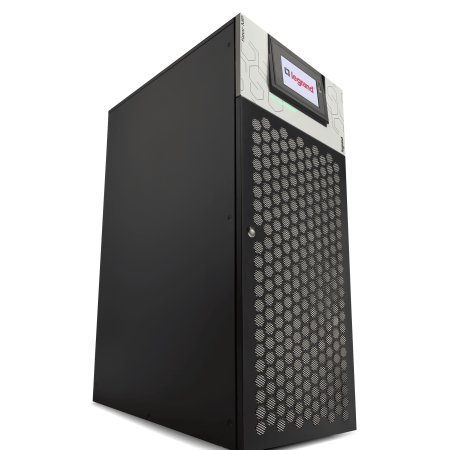

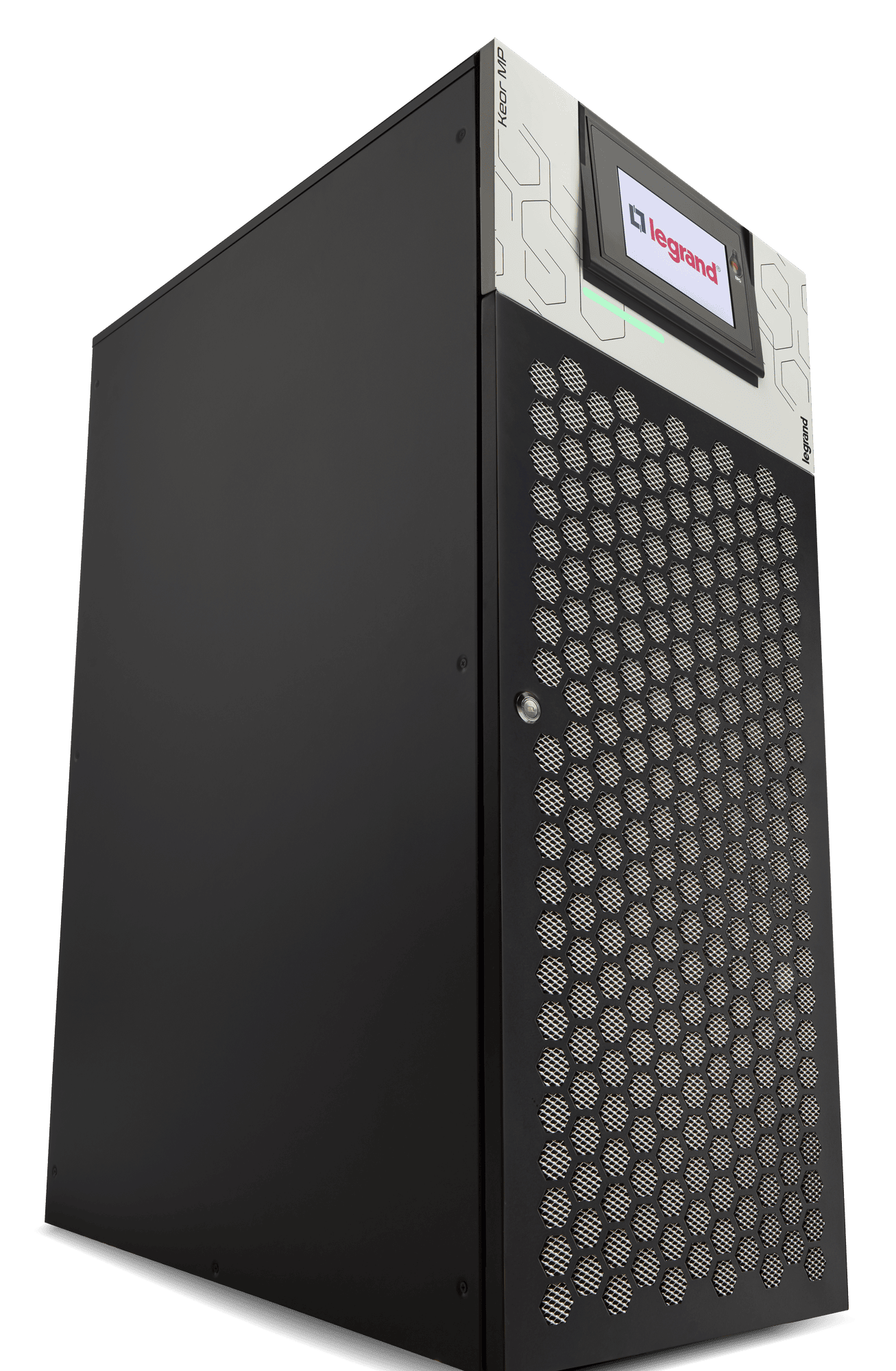

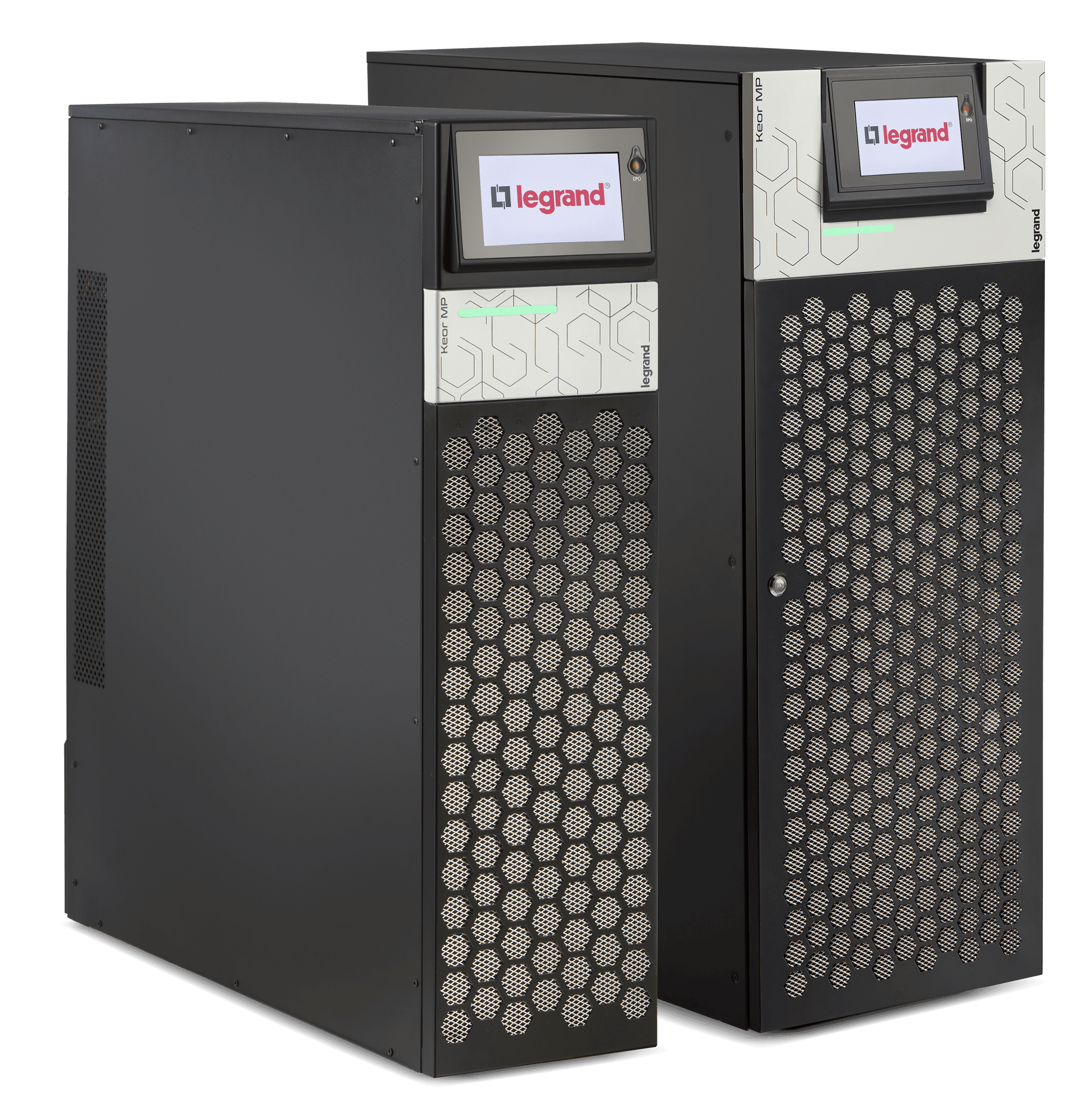

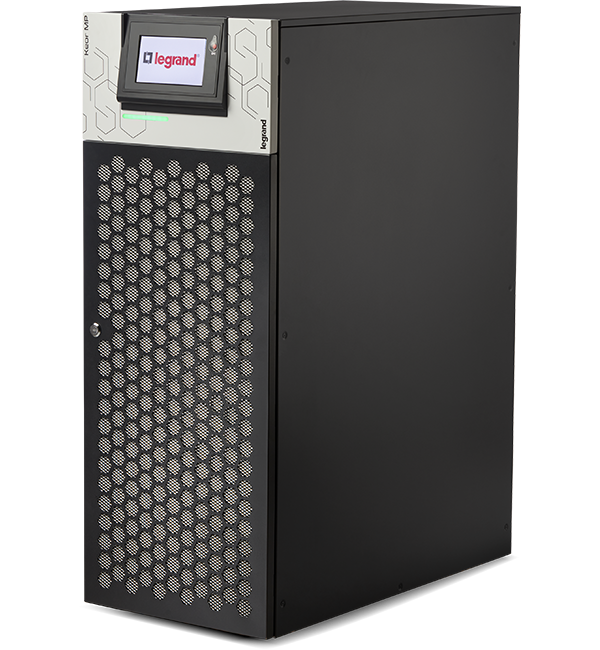

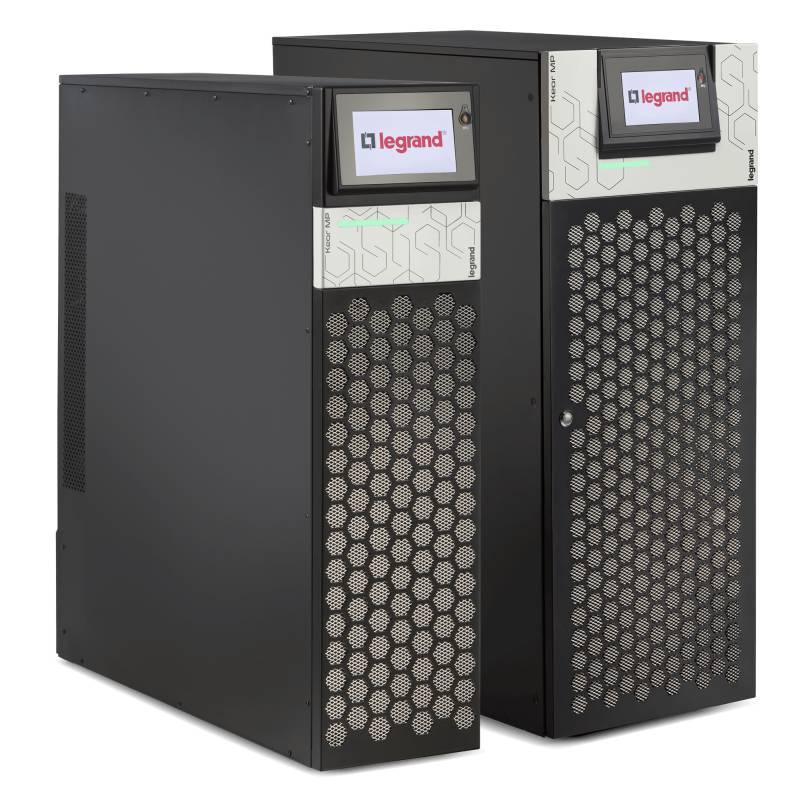

Keor MP

Three-phase UPS

From 10 up to 200 kVA

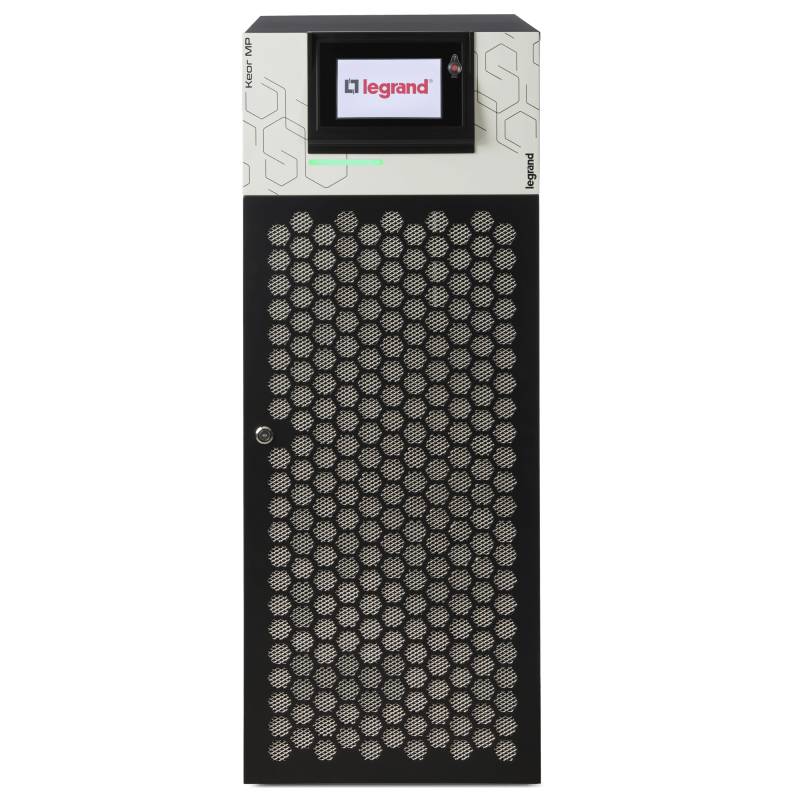

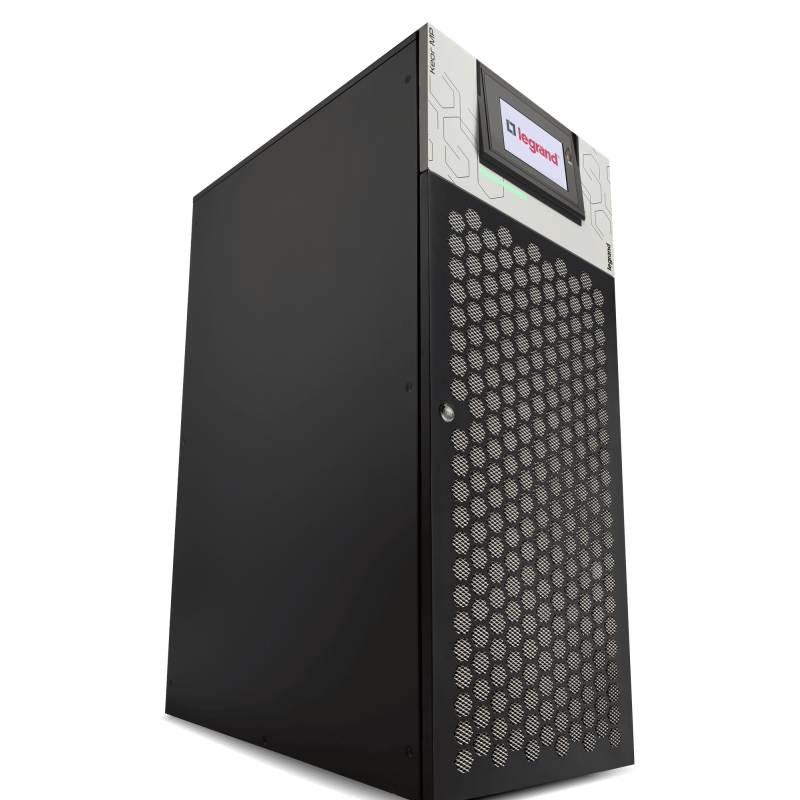

Keor MP is a three-phase online double-conversion UPS with power from 10 to 200 kVA.

Engineered to simplify installation, it delivers unparalleled efficiency in a compact design.

With its high efficiency of up to 96%, a small footprint, wide autonomy  range with internal VRLA batteries, Li-ion battery technology, and scalability of up to 1.2 MW, the Keor MP is designed to meet the rigorous power demands of modern businesses

It is ideal for IT & ITeS enterprises, educational institutions, edge and enterprise data centers, infrastructure, manufacturing, commercial, hospitals, and diagnostic centers.

General features

Keor MP 10-80 kVA Internal battery configuration

  • Power factor correction PFC (input PF>0,99)

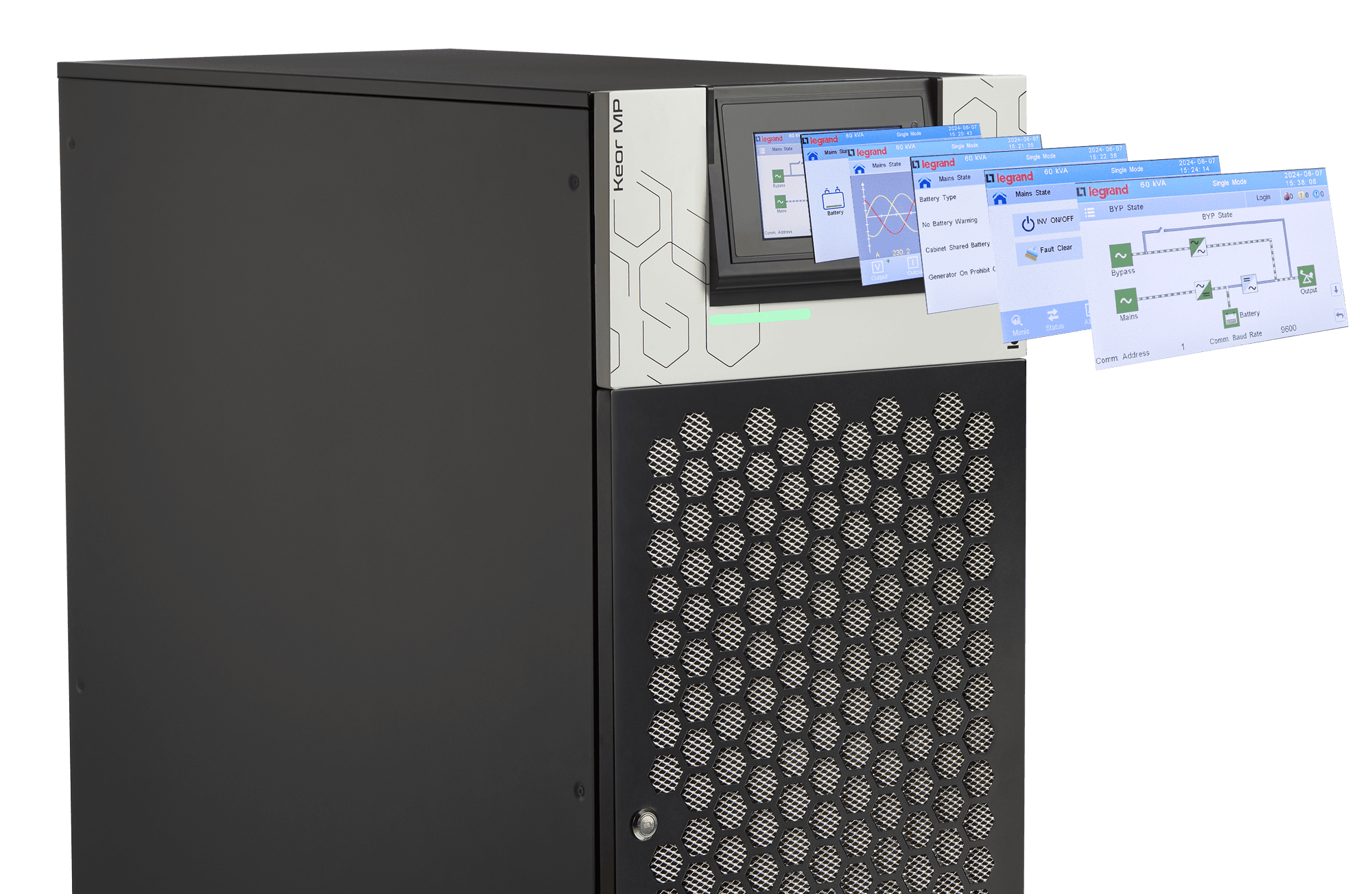

  • User friendly 5’’ and 7'' touch screen display
  • Wide input voltage range and frequency
  • Dual Input
  • Cold Start
  • Backfeed contact for external Protection
  • Parallel Operation up to 4 units
  • Wide configurations of Internal Batteries embedded
  • VRLA (3Wire) 40 blocks
  • Overload & short circuit protection
  • Powerful Built-in Charger up to 12 and 18A
  • Embedded RS232, RS485, SNMPSlot, parallel port, dry contact
  • Wheels for easy movement

General features

Keor MP 60-200 kVA

  • Power factor correction PFC (input PF>0,99)

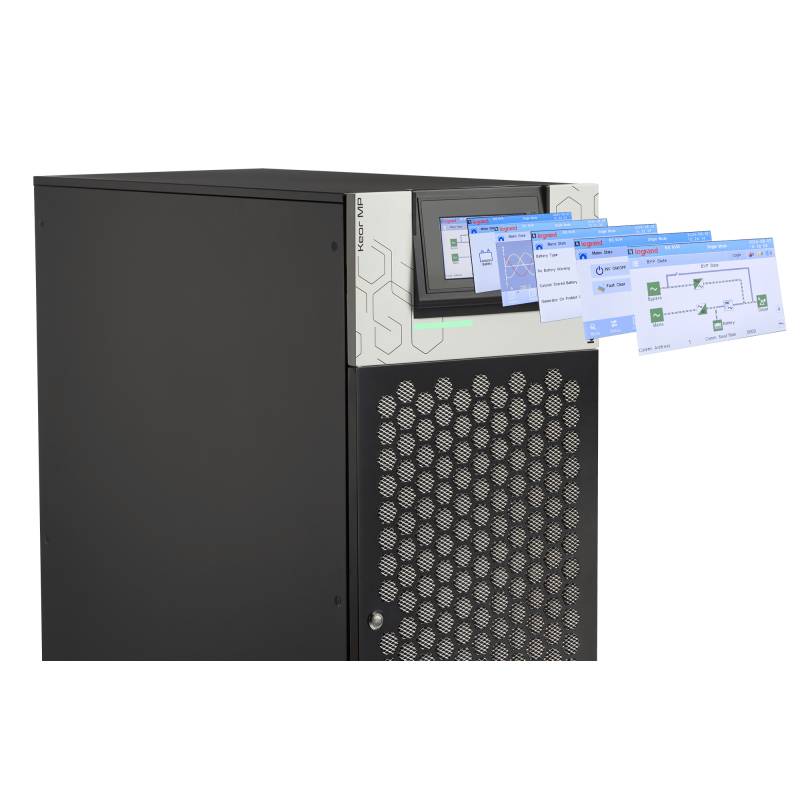

  • User friendly 7’’ touch screen display
  • Wide input voltage range and frequency
  • Dual Input
  • Cold Start
  • Embedded Backfeed Protection
  • Genset port
  • Parallel Operation up to 6 units
  • VRLA (3Wire) 20 blocks and 40 blocks (only external batteries)
  • Common battery connection
  • Li-Ion (TP100, TP120)
  • Overload & short circuit protection
  • Powerful Built-in Charger 20-40-60A
  • Advanced battery management (ABM)
  • Embedded RS232, RS485, SNMPSlot, parallel port, dry contact
  • Wheels for easy movement
